Authorized dealer in Anaheim, CA · 2025 Distributor of the Year · NCE certified in-house. 30 models published with prices, from controllers to H Series cards and fiber converters. What you get here on top of the list is the part a catalog cannot tell you: which model is right for your pixel count, and where the money stops buying anything useful.
Authorized dealer in Anaheim · 2025 Distributor of the Year
VX400All-in-one, 2.6M pixels$1,291
VX1000All-in-one controller$2,067
MX203.9M pixels$1,667
MX306.5M pixels$2,584
MX40 Pro4K flagship, 9M pixels$8,868In stock in Los Angeles. All 30 models, priced ↓
Not sure which controller? Send the cabinet count and pixel pitch, and we will name the model.
NovaStar 2025 Distributor of the YearNovaStar stock in our Anaheim warehouse
The range
Everything we hold or order from NovaStar, from the COEX controllers down to a fiber converter. The rated capacity on each is NovaStar's; the note under a controller is ours — what that tier is for, and where it catches people out.
The current flagship platform and where the selection decision actually gets made — from a single conference room up to a card-configured 8K chassis.
4K flagship · 9M pixels · 20 Ethernet + 4×10G optical
Our takeOur default recommendation for a serious fixed 4K install. Rated at 9 million pixels across 20 Gigabit Ethernet and 4×10G optical ports, which covers almost every corporate lobby, house of worship and retail flagship we are asked about. Send the cabinet layout and we will check it against that rating before you buy, rather than after the wall is up.
$8,868In stock, Los Angeles
Get a quote →6.5M pixels · 10 EtherCON — small to mid-size rooms
Our takeThe value pick for meeting rooms, small sanctuaries and lobby walls, rated at 6.5 million pixels across 10 Gigabit Ethernet ports. The trap is buying it for a wall that is about to grow: a second MX30 plus the genlock work costs more than one MX40 Pro would have.
$2,584In stock, Los Angeles
Get a quote →3.9M pixels · all-in-one
Our takeAll-in-one, rated at 3.9 million pixels — the right size for a single conference room or a retail window. If the brief mentions redundancy, multi-source switching or a second wall in phase two, start at the MX30 instead.
$1,667In stock, Los Angeles
Get a quote →8K modular · 141M pixels · card-configurable 1G or 5G
Our takeSpecify this when the build is genuinely 8K or when the card slots are the point — you can mix 1G and 5G output in one chassis and re-card it later rather than replace it. On a 4K job it is over-bought; the MX40 Pro does that work for less.
$8,600To order
Get a quote →8K modular · 35.38M pixels · compact 2U chassis
Our takeThe modular chassis in a compact frame. Worth the premium over MX40 Pro only if you need card-level redundancy or expect the pixel count to grow — touring rigs and phased fixed installs. A single-phase install that will not change should take the MX40 Pro instead.
$4,417To order
Get a quote →4K integrated · 9M pixels · 40 Gbps optical transmission
Our takeChoose this when the distance between processor and wall is the problem. Same 9 million pixel rating as the MX40 Pro — you are not buying capacity here, you are buying transport. The 40 Gbps optical path removes the copper run limit, which is what makes it the answer for stadium, arena and campus builds where the control room is nowhere near the screen. In one room it is an expensive way to buy 4K.
$8,048To order
Get a quote →3.9M pixels · single layer, no genlock
Our takeRated at 3.9 million pixels like the MX20, but single-layer and without genlock — digital signage runs, menu boards, back-of-house displays, anywhere nothing needs scaling or switching. Buying it for a 4K source and scaling down wastes the source; buy for the pixel count you will actually feed it.
$927To order
Get a quote →All-in-one video processing and control in one box — the rental and staging end of the line.

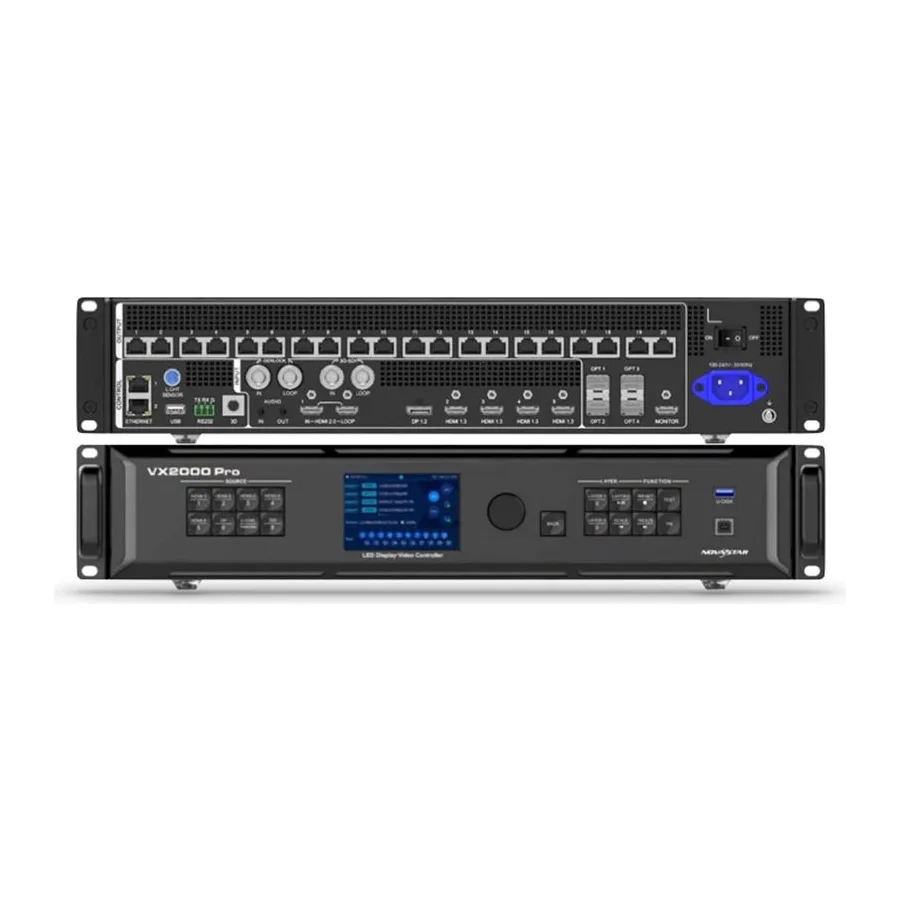

All-in-one controller · HDMI, DisplayPort and SDI in · multiview
On quoteIn stock, Los Angeles
Get a quote →

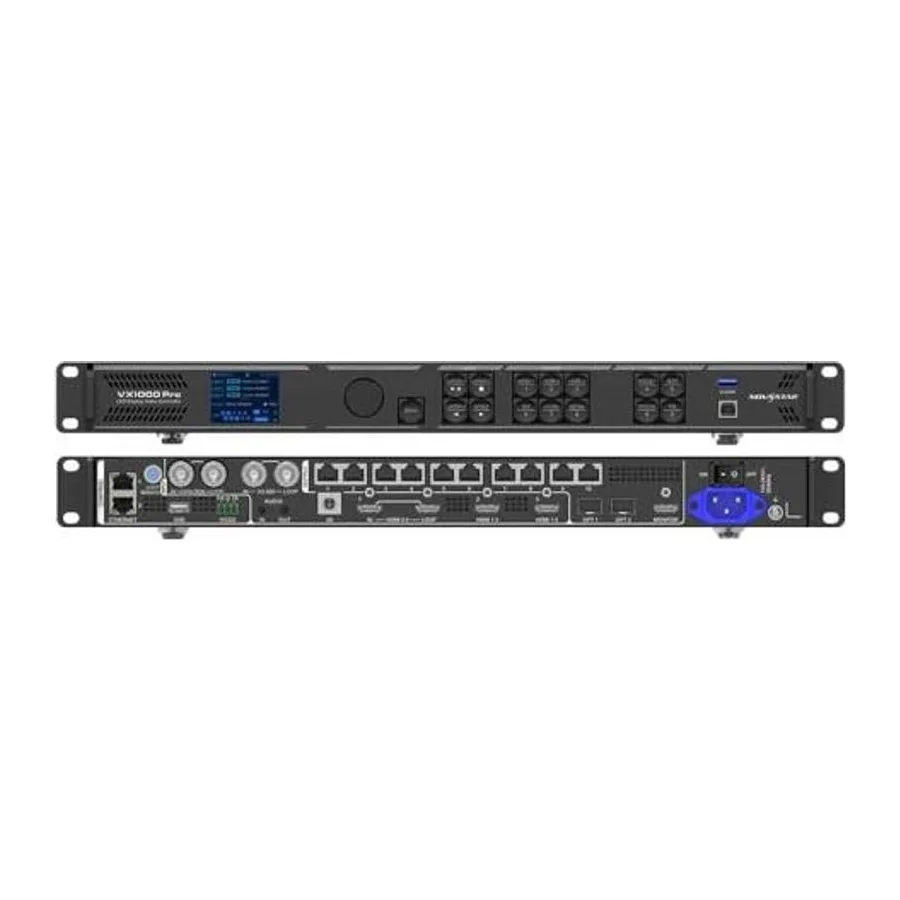

6.5M pixels · 10 Ethernet · controller, fiber converter or bypass
On quoteIn stock, Los Angeles
Get a quote →

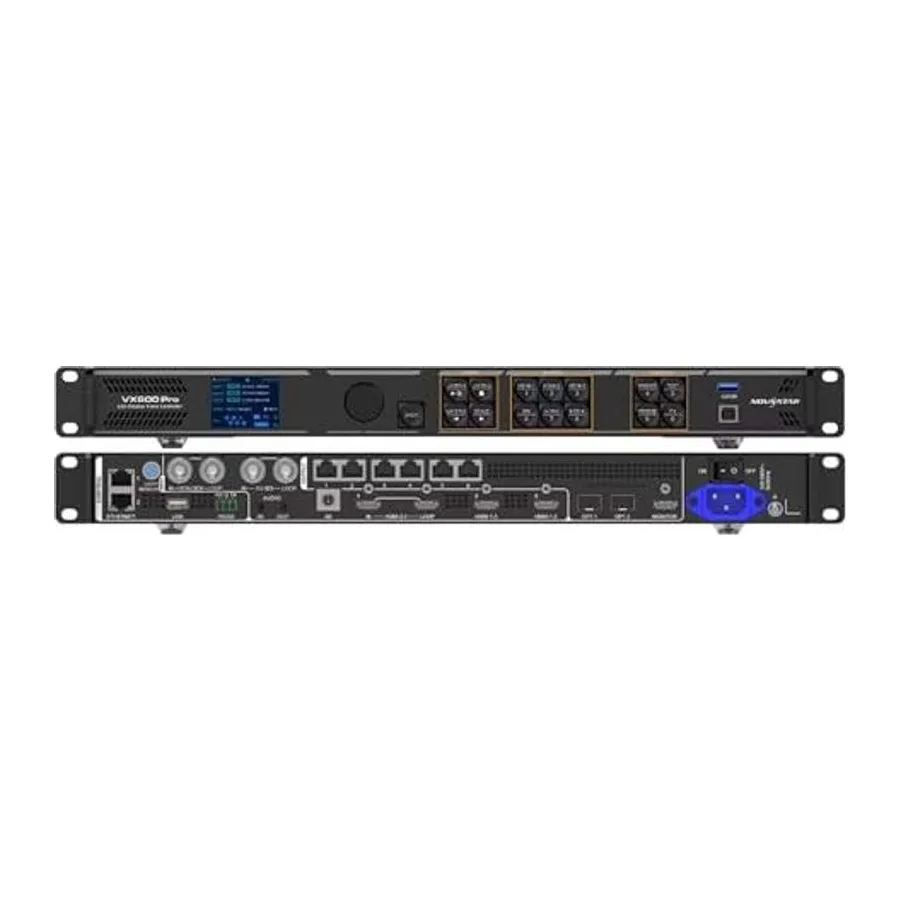

3.9M pixels · 6 Ethernet · controller, fiber converter or bypass
On quoteIn stock, Los Angeles

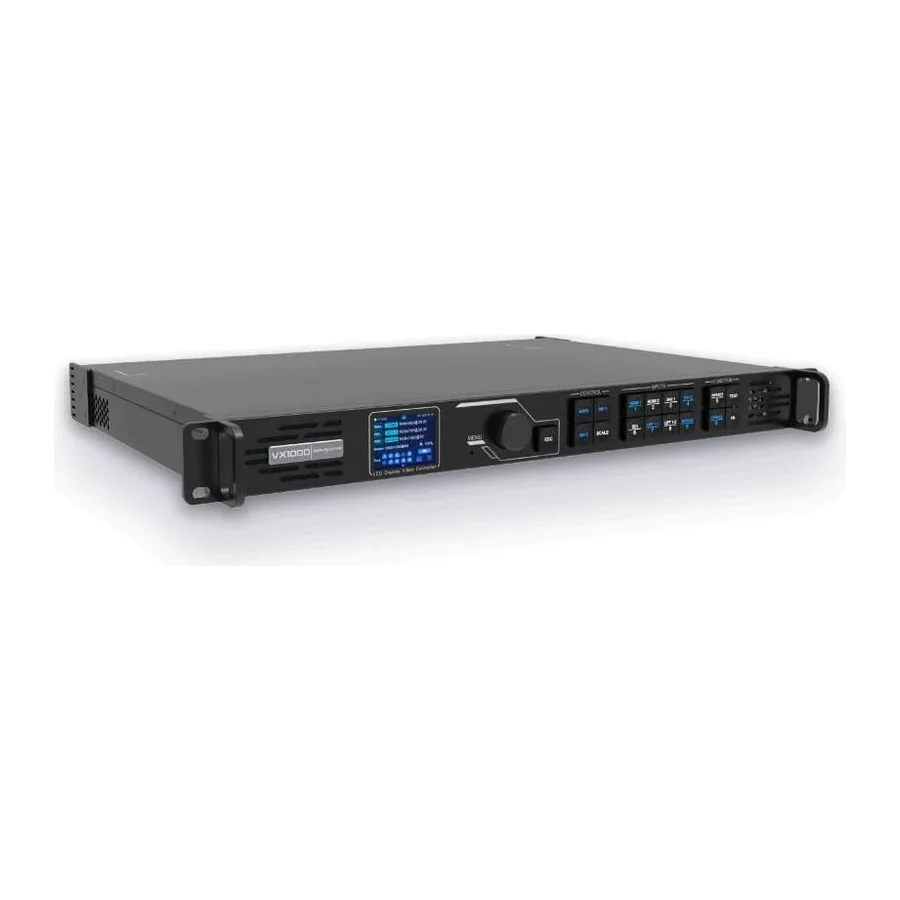

Get a quote →All-in-one controller · video processing and control in one chassis
$2,067In stock, Los Angeles
Get a quote →
All-in-one controller · multi-input, HDMI / DVI / SDI / optical
$1,444In stock, Los Angeles
Get a quote →

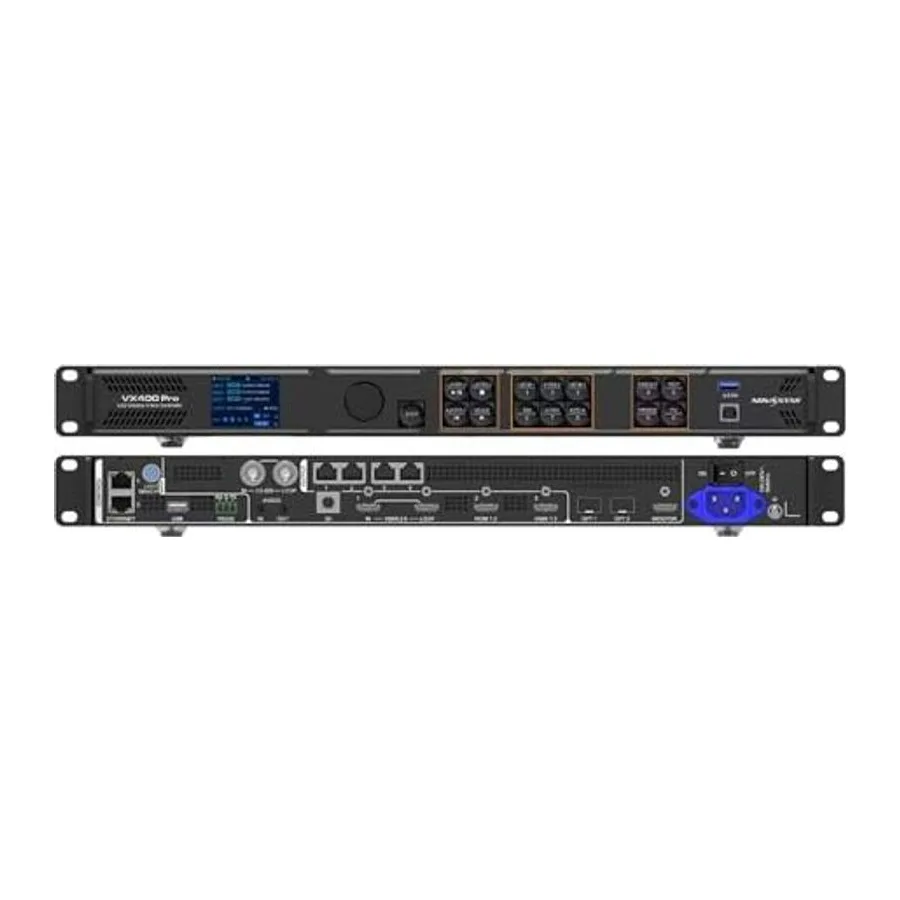

2.6M pixels · 4 Ethernet · low latency, 10G optical out
$1,291In stock, Los Angeles

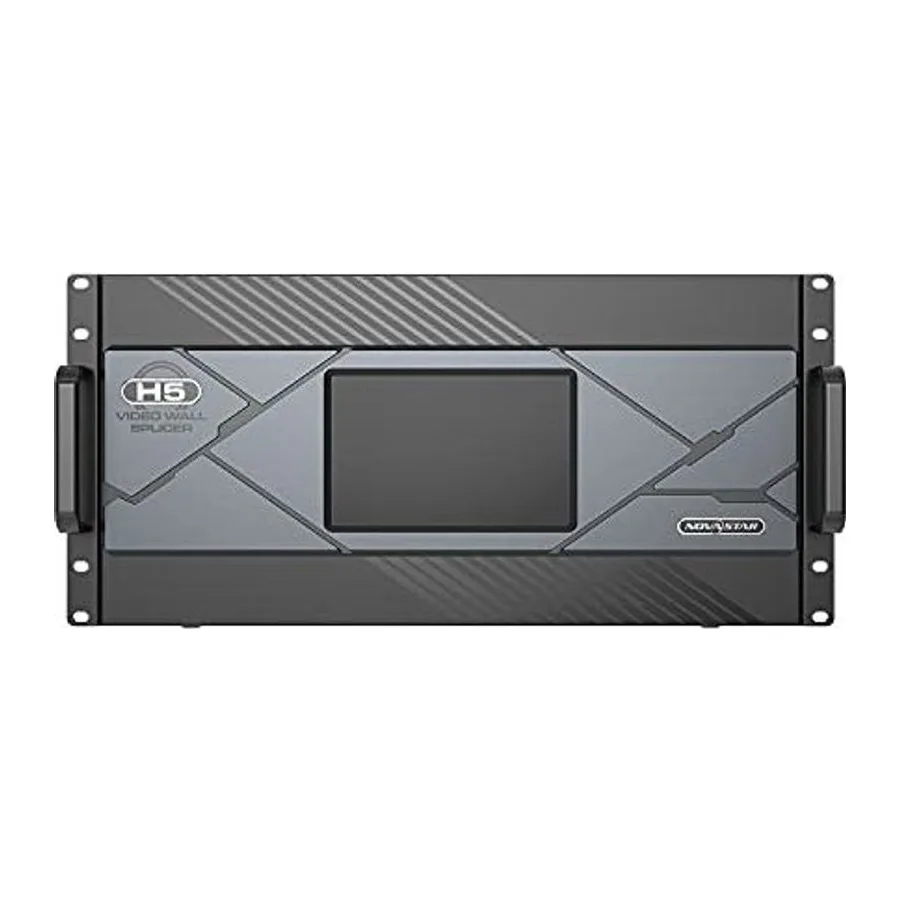

Get a quote →Modular splicing for control rooms and large fixed installs. The chassis is specified to a port plan — cards are ordered with it, not after it.
2U chassis · chassis only — sending and input cards ordered separately
$669In stock, Los Angeles

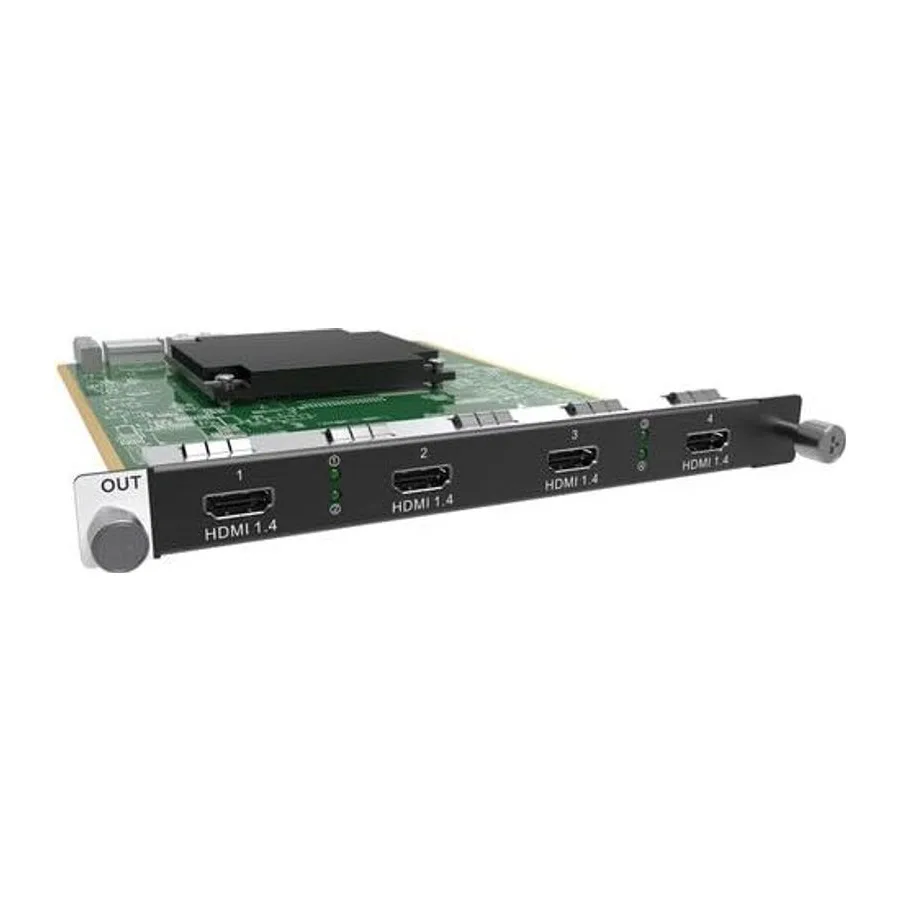

Get a quote →Input and output cards for the H chassis. Send the port plan and we will confirm the card list against the chassis before anything ships.

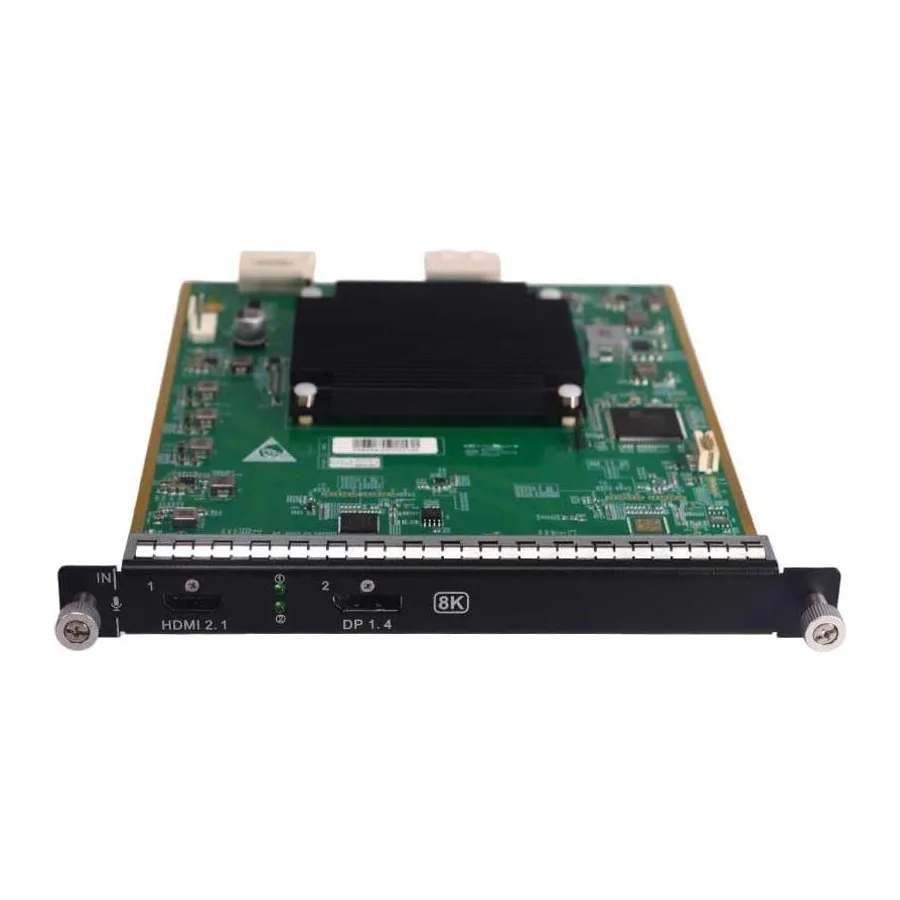

Input card · 1× HDMI 2.1, 1× DisplayPort 1.4
On quoteIn stock, Los Angeles
Get a quote →

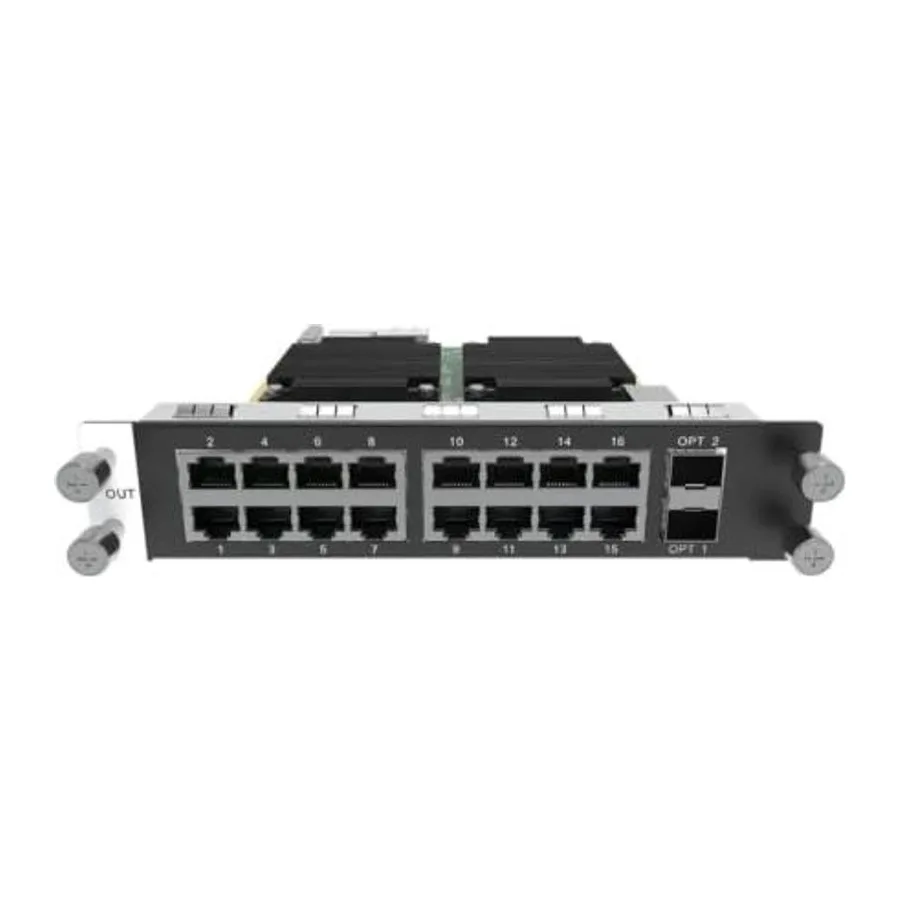

Output card · 16 Ethernet ports, 2 optical
$1,644In stock, Los Angeles
Get a quote →
Input card · 1× HDMI 2.0, 1× DisplayPort 1.2
$1,620In stock, Los Angeles
Get a quote →
Input card · 2 IP camera inputs over Ethernet
$1,479In stock, Los Angeles
Get a quote →
Input card · 2 Ethernet, 1× HDMI 1.3 — preview
$1,309In stock, Los Angeles
Get a quote →

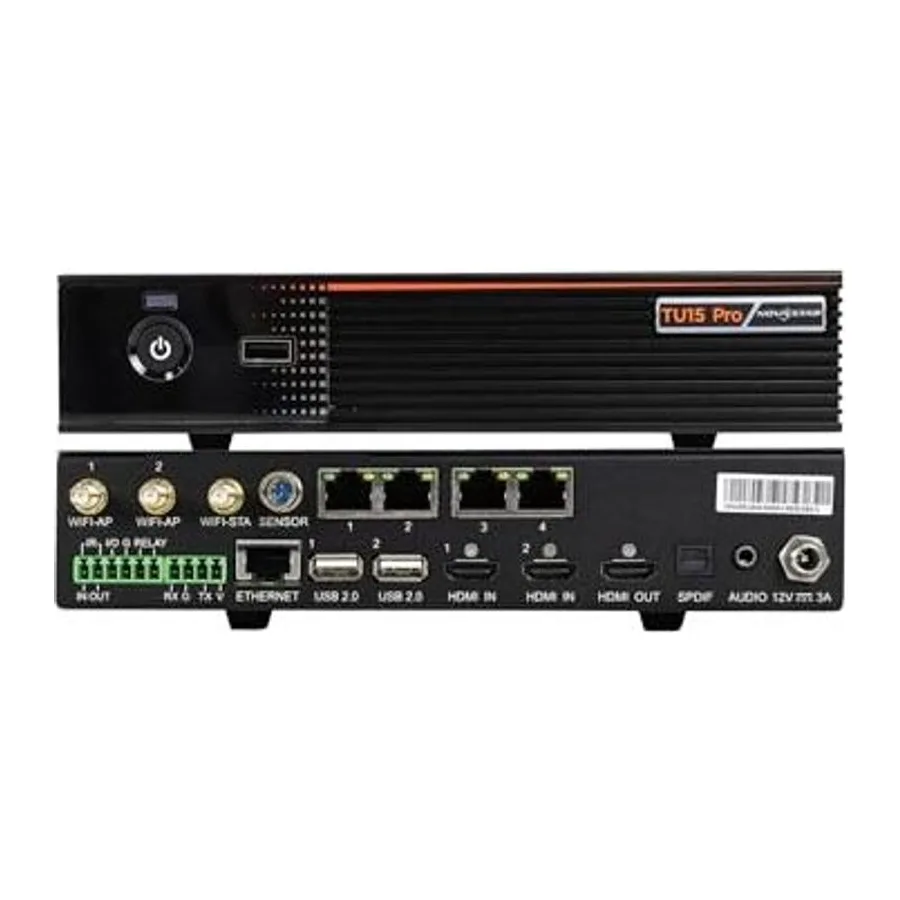

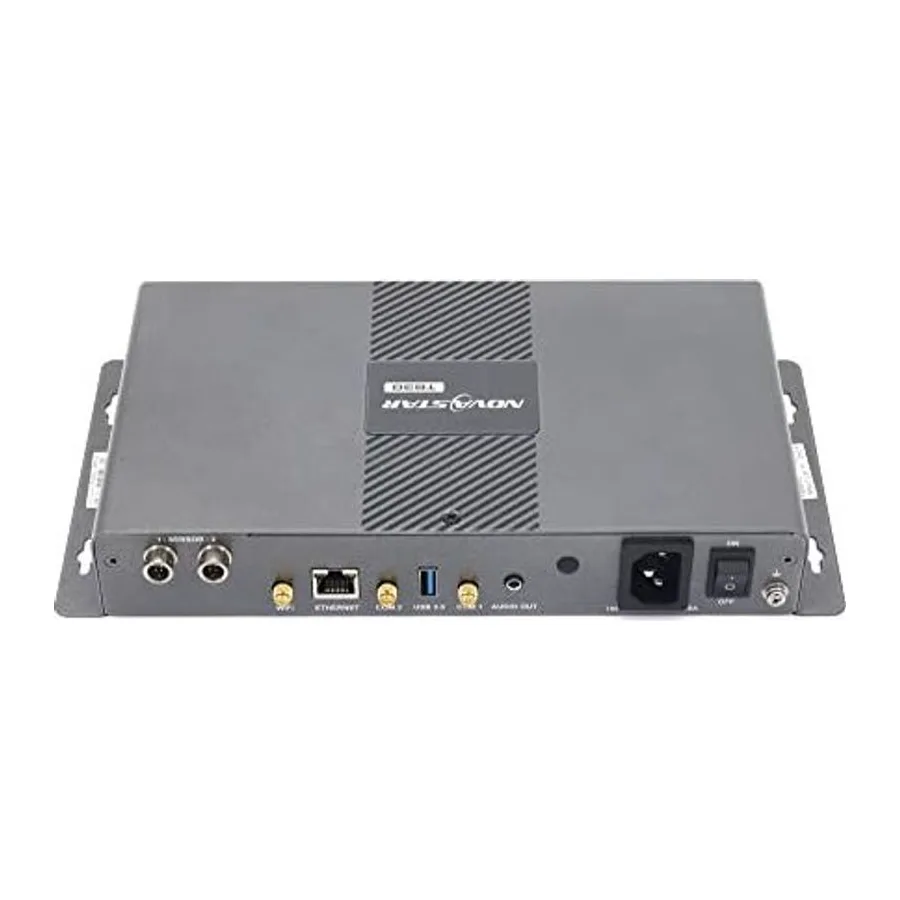

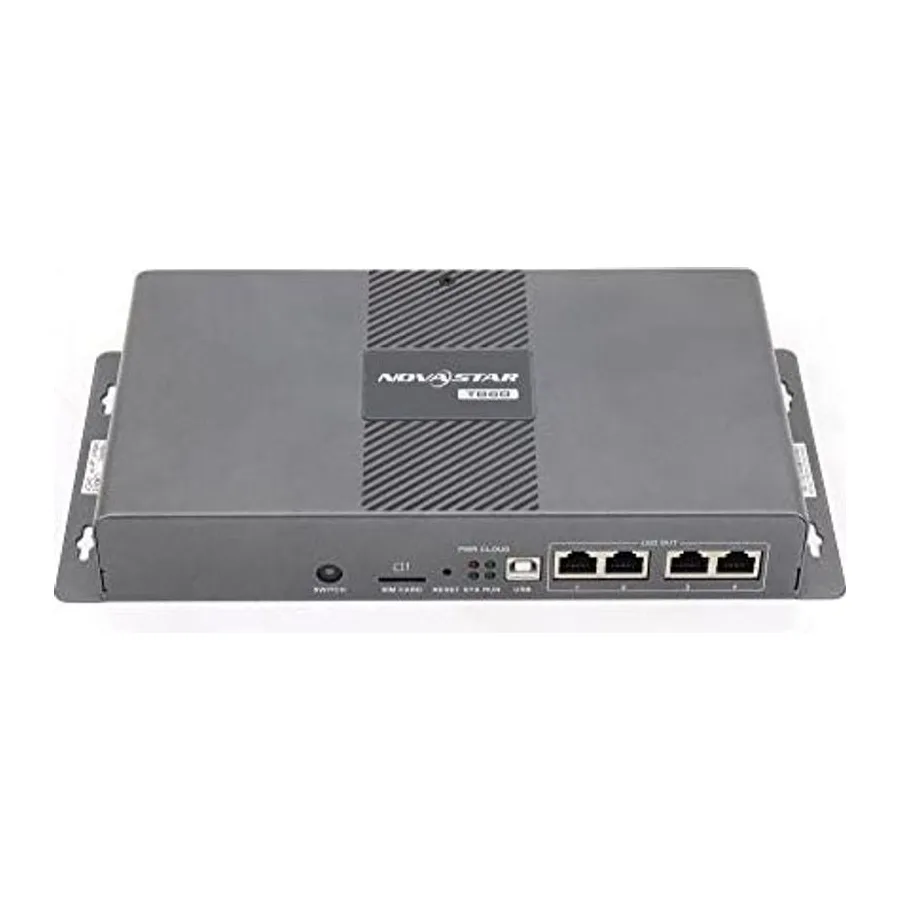

Taurus players and playback processors for signage and content that runs without an operator.
Optical-to-electrical conversion where the control room is not near the wall. Single-mode for distance, multimode for in-building.

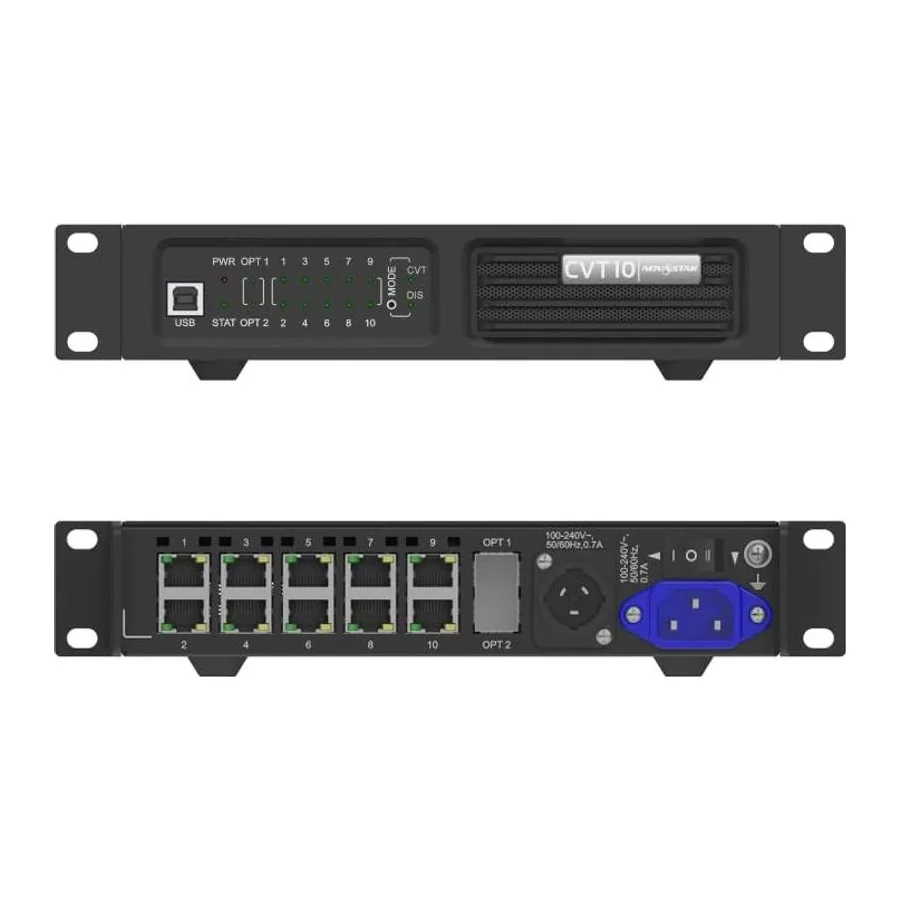

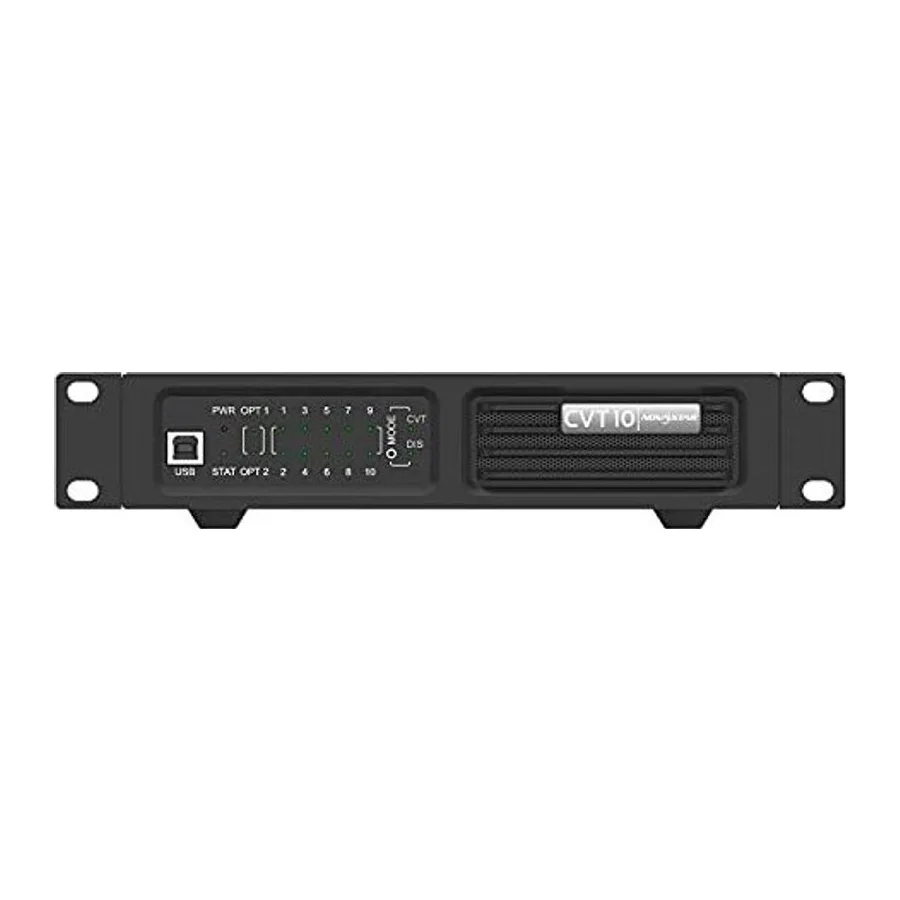

Fiber converter · single-mode · 10 Gigabit Ethernet ports, dual 10G optical
$1,150
Get a quote →
Stocked models ship the same day from Anaheim; the rest are ordered against the project. Send the part list and we will confirm both availability and whether it is the right card for your chassis — ask for a quote →
PixelPro Productions is an authorized NovaStar dealer in Anaheim, California, and NovaStar's 2025 Distributor of the Year, serving Greater Los Angeles and Orange County. We hold NovaStar NCE certification in-house, so system commissioning, cabinet mapping and fault diagnosis are performed by our own engineers. We supply the COEX, H and VX lines together with H Series input and output cards, Taurus media players and fiber converters — 30 models are published here with prices. Common controller models are stocked locally at 3111 E Miraloma Ave, Anaheim. Installation is available under California contractor license CSLB #1063528 (General B).
Buying from us
Send the cabinet model and the layout. If the controller you asked for is the wrong tier for that pixel count, we will say so before the invoice, not after the wall is up. Over-specifying costs you money; under-specifying costs you the project.
NCE certification means the person who maps your cabinets works here. No factory escalation, no time-zone gap on a load-in day, and the same engineer is still reachable when phase two starts.
A controller is a third of a working system. Cat6 snakes, fiber, and Socapex and Camlock power distribution are stocked in Anaheim, so the install does not stop while a cable ships.
Integrator or dealer? We also back your LED projects with design, structure, installer training and commissioning, and your client stays yours. How we work with integrators →
Questions
It means commissioning and fault diagnosis happen here rather than as a support ticket. On a live install the practical difference is the response window: a receiving-card mismatch or a bad cabinet map gets resolved the same day by someone in Anaheim, instead of waiting on a time-zone gap to a factory queue.
Common models are on a shelf in Anaheim rather than drop-shipped, so the delivery date is ours to promise rather than a distributor’s to miss. Commissioning and cabinet mapping are done by our own NCE-certified engineers. The cable, fiber and power distribution for the same run are stocked here, so one order covers the signal path instead of three. And installation can sit on the same contract under CSLB #1063528 (General B). On project and multi-unit purchases, send the cabinet count and ask for a quote.
The pixel count of the finished wall decides it, not the budget. Total the cabinet resolution, add whatever phase two will add, and compare that against each model’s rated loading capacity, which NovaStar publishes. The note under every model below says what that tier is actually for. If you send the cabinet model and layout we will do the arithmetic against your numbers and put it in writing — which is a more useful answer than any threshold we could print here.
Common models are held in Anaheim. Less common configurations and the modular chassis are ordered against the project, which is normal for this category — a card-configured MX6000 Pro should be built to your port plan, not pulled off a shelf in the wrong configuration.
Both. We specify and supply the display system as a whole, and we also sell the controller on its own to integrators who are handling their own build. Cable, fiber and power distribution for the run are stocked locally.
Designing the wall these processors will drive? PixelBid, our free LED wall calculator, works out cabinets, power circuits and data runs, with no sign-up. Open the calculator →
