Service · Transparent, sphere and custom-shape LED

Transparent, sphere and custom-shape LED, to buy or rent.

LED that is not a flat rectangle: transparent screens that let a shop window stay a window, a 2-metre LED sphere in our Anaheim warehouse, and screens built to the shape of the space. We sell them, rent them, and in California install them under our own contractor licence.

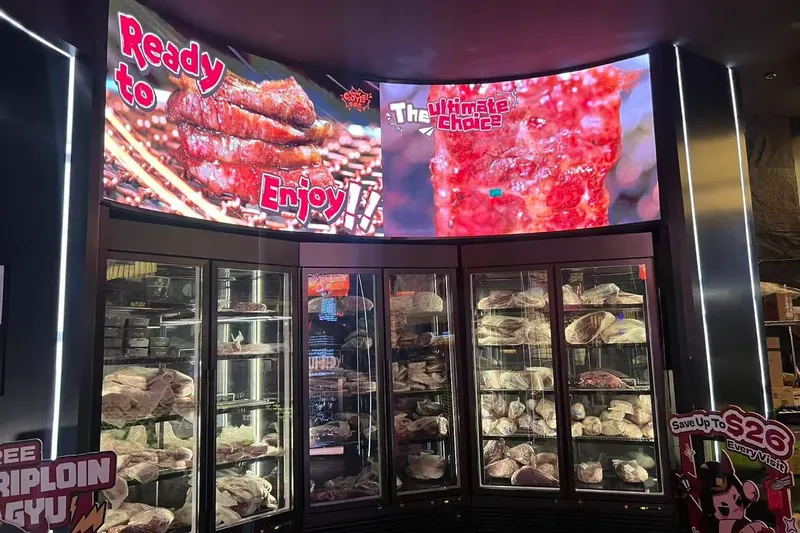

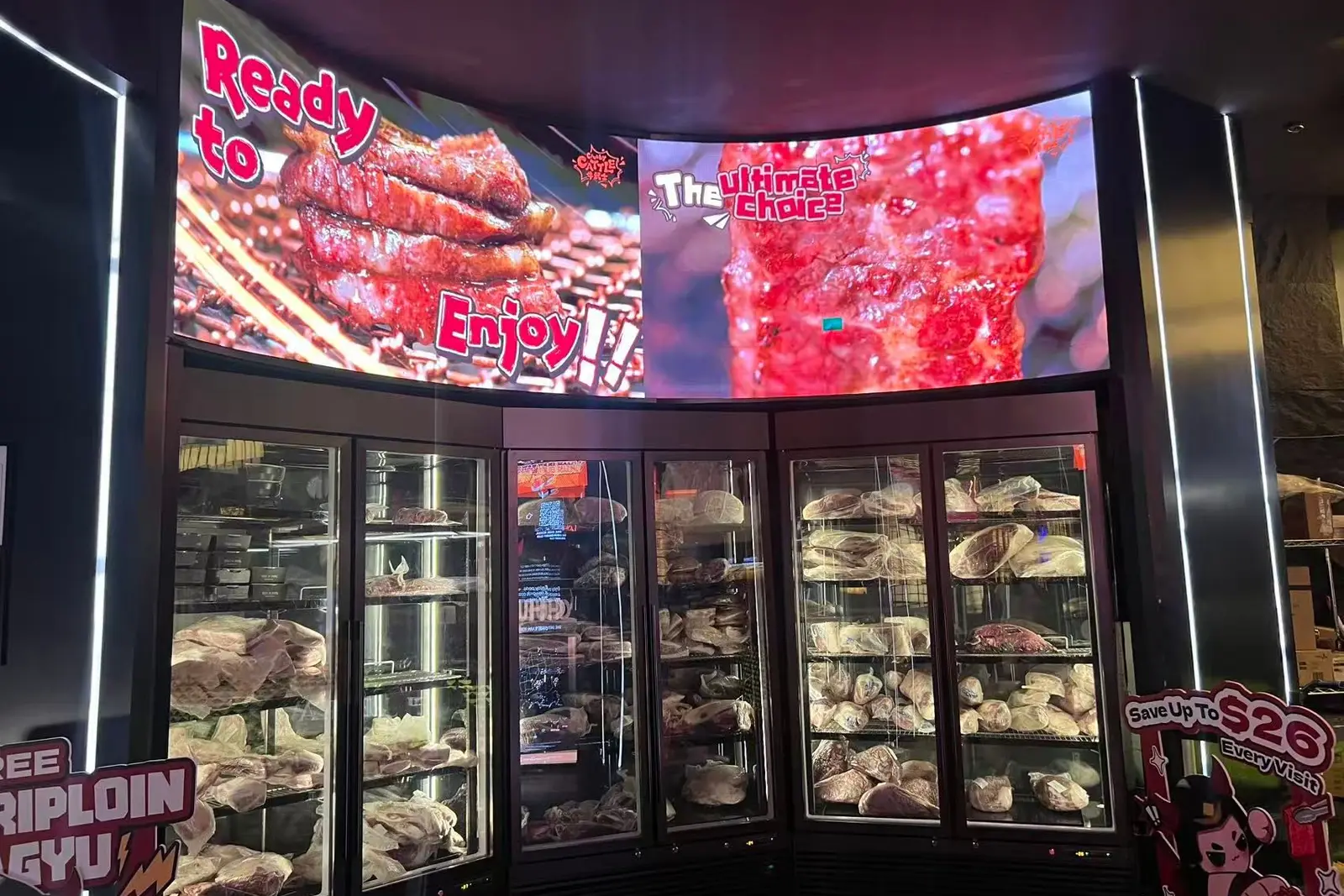

A curved LED screen over the display fridges at Chubby Cattle, Los Angeles area, 2023
A curved LED screen over the display fridges at Chubby Cattle, Los Angeles area, 2023
4,500+ nits
Transparent LED, all four series
2 m
P2 indoor LED sphere, in Anaheim
2023
Transparent window screen, Times Square
Buy or rent
Installed in California under CSLB #1063528

PixelPro Productions in Anaheim, California sells and rents creative LED displays. Holographic transparent LED comes in four series: Hanging (P3.91, P6.25, P10.4), Poster (P3.91, P6.25), Glass Curtain (P3.91, P6.25, P10.4) and Rental (P3.91, P6.25), all rated at 4,500 nits or more. A 2-metre indoor LED sphere with a 2 mm pixel pitch (P2) is kept in our Anaheim warehouse, to buy or rent, and a can-shaped LED screen is available to rent. We also build custom shapes: a round ceiling screen for Miniso at American Dream, New Jersey, and curved screens for Chubby Cattle in the Los Angeles area in 2023. In 2023 we installed a transparent window screen at Miniso’s Times Square flagship. Rentals cover Southern California, the San Francisco Bay Area and Las Vegas; California installations are made under CSLB licence #1063528.

Transparent LED, the “holographic” screen

A transparent LED screen is built from rows of LEDs with open space between them, so you see through the screen when it is dark and through the gaps when it is lit. A shop window stays a window, and a glass front still lets daylight in.

“Holographic” is the trade name, not a hologram. Content made on a black background shows only the lit pixels, so products, logos and figures seem to float in the air, with the room or the street visible behind them.

Four series

Hanging
P3.91 · P6.25 · P10.4. Hung from the ceiling, in atriums and showrooms
Poster
P3.91 · P6.25. A free-standing screen for store floors and entrances
Glass Curtain
P3.91 · P6.25 · P10.4. Fixed behind glass fronts and shop windows
Rental
P3.91 · P6.25. Built to be set up and taken down, for events and stages
Brightness
4,500 nits or more, every series

Every series is available to buy. We are building a rental stock of the Rental series; ask us for dates and for current lead times.

Hanging series (supplier render)
Hanging series (supplier render)
Poster series (supplier render)
Poster series (supplier render)
Glass Curtain series (supplier render)
Glass Curtain series (supplier render)
Rental series (supplier render)
Rental series (supplier render)

Where we have done it: Times Square, 2023

Miniso’s first LED screen in a US store, at its Times Square flagship in 2023, included a high-brightness transparent screen in the window facing the Times Square intersection: the store keeps its view of the street, and passers-by see the screen. The Miniso case study →

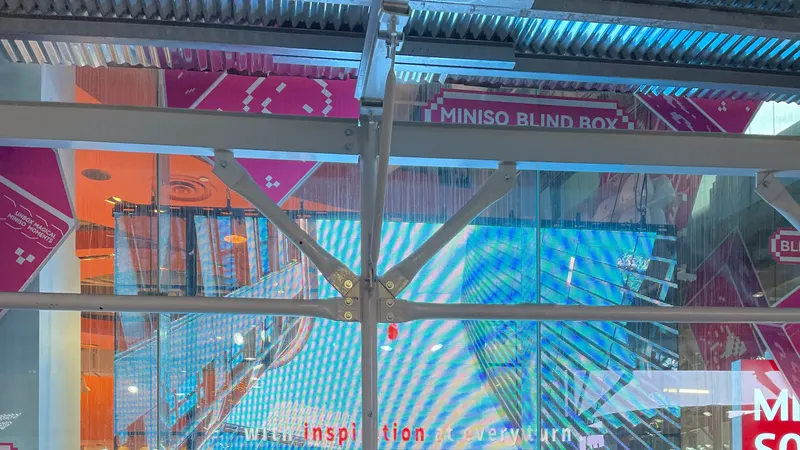

Miniso Times Square: the transparent window screen, from the street
Miniso Times Square: the transparent window screen, from the street
The same screen from inside the store
The same screen from inside the store

The LED sphere: 2 metres, P2, in our warehouse

Our LED sphere is 2 metres across (about 6.6 ft), for indoor use, with a 2 mm pixel pitch (P2): fine enough to read up close. It plays video all the way round, so it works from any side of a room, a stage or a booth.

It is in our Anaheim warehouse and travels in its own flight cases. Rent it for an event, an activation or a launch, or buy one: we supply spheres to order.

A sphere is assembled from curved modules on a steel frame, and set up once it is in place. It can stand on its base or hang from rigging; we have flown one over a trade-show booth.

Lit up, with a mosaic of screen content
Lit up, with a mosaic of screen content
In our Anaheim warehouse, on its flight case
In our Anaheim warehouse, on its flight case
Unpacked in the warehouse
Unpacked in the warehouse
The frame, before the modules go on
The frame, before the modules go on
Modules on, before it is lit
Modules on, before it is lit
Tested at the factory
Tested at the factory
A sphere we hung over a booth at a technology trade show
A sphere we hung over a booth at a technology trade show

Custom shapes

When the design calls for a circle, a curve or an object, we work out the cabinet layout, the structure that carries it and the power, then build it. Also in our rental stock: an LED screen shaped like a drink can, for brand activations. Ask us for details.

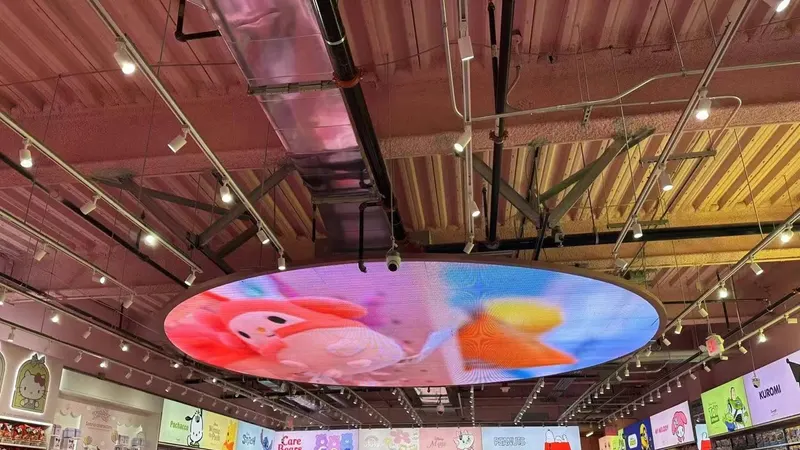

A round ceiling screen, Miniso at American Dream, New Jersey

A round LED screen hung from the store ceiling. The mall required structural-engineer certification for the rigging, and our custom hanging structure had to meet the building’s load points one for one. Read the Miniso case study →

The finished round screen at American Dream
The finished round screen at American Dream
The round frame hung, before the LED
The round frame hung, before the LED
Fitting modules from the scaffold
Fitting modules from the scaffold

Curved screens, Chubby Cattle, Los Angeles area, 2023

At Chubby Cattle 牛武士 at Diamond Plaza we installed in 2023 a curved LED screen that follows the line of the display fridges, and tall curved screens on the walls and columns.

Building the curved screen over the fridges
Building the curved screen over the fridges
The curved screen over the fridges
The curved screen over the fridges
A tall curved screen
A tall curved screen
Two screens stacked on a column
Two screens stacked on a column

Buy, rent or have it installed

  • Buy. Transparent LED in all four series, LED spheres and custom shapes, supplied anywhere in the US.
  • Rent. The 2 m LED sphere and the can-shaped screen, with the transparent Rental series to follow, across Southern California, the San Francisco Bay Area and Las Vegas.
  • Install. In California we design the structure and power and install under CSLB licence #1063528. Elsewhere we supply the LED and work alongside the local fit-out team, as we have for Miniso stores across the US.
  • Control. We are an authorised NovaStar dealer, with NCE-certified staff to set up the control system.

Permanent LED wall installation →

Event AV production and equipment rental →

Questions about transparent, sphere and shaped LED

Is a holographic LED screen a real hologram?

No. A “holographic” screen is a transparent LED screen: rows of LEDs with open space between them. Content made on a black background shows only the lit pixels, so objects seem to float in the air with the space behind them still visible. No glasses and no projection are involved.

What transparent LED screens does PixelPro offer?

Four series, all rated at 4,500 nits or more: Hanging (P3.91, P6.25, P10.4) for ceilings, Poster (P3.91, P6.25) as a free-standing screen, Glass Curtain (P3.91, P6.25, P10.4) for glass fronts and shop windows, and Rental (P3.91, P6.25) for events. All four can be bought from PixelPro Productions in Anaheim, California.

Can I rent a transparent LED screen?

The Rental series of transparent LED is the one PixelPro Productions will rent; we are building that rental stock now, so ask us for dates. Every series, including the Rental series, can be bought.

How big is the LED sphere, and can I rent it?

PixelPro’s LED sphere is 2 metres in diameter (about 6.6 ft), with a 2 mm pixel pitch (P2), for indoor use. It is kept in our Anaheim, California warehouse and can be rented or bought. Rentals cover Southern California, the San Francisco Bay Area and Las Vegas.

Can you build an LED screen in a custom shape?

Yes. PixelPro Productions has built a round LED ceiling screen for Miniso at American Dream, New Jersey, where the mall required structural-engineer certification of the rigging, and curved LED screens for Chubby Cattle in the Los Angeles area. We also rent a 2 m LED sphere and a can-shaped LED screen.

Do you install outside California?

In California, PixelPro Productions installs under CSLB licence #1063528, including the structure and power. Outside California we supply the LED and work alongside the local fit-out team, as we have for Miniso stores in major US cities.
