Gloshine · Dawn (DN) series · P2.6 indoor
Gloshine DN 2.6
P2.6 · 500 × 500 mm · 192 × 192 px · 7680 Hz
Quote only
500+ cabinets in stock, Anaheim
Whole walls supplied and installed, or cabinets by the case · 2-year warranty
- 2.6 mm pitch, 192 × 192 pixels per 500 × 500 mm cabinet
- 7680 Hz refresh, 800–1000 nits: built for camera work
- Curves −7.5° to +7.5°; 45° bevel cabinet for corners and cubes
- NovaStar A10s Pro receiving cards; matching 0.5 m flying and ground-stack bars
Configured and commissioned by our own NovaStar NCE-certified engineers · Installation in California under CSLB #1063528 (General B); outside California our own crew supplies and installs.
Get a quote
Three fields. We reply with a written quote.
Dawn (DN) series · rental and stage
Where it fits, and where it does not

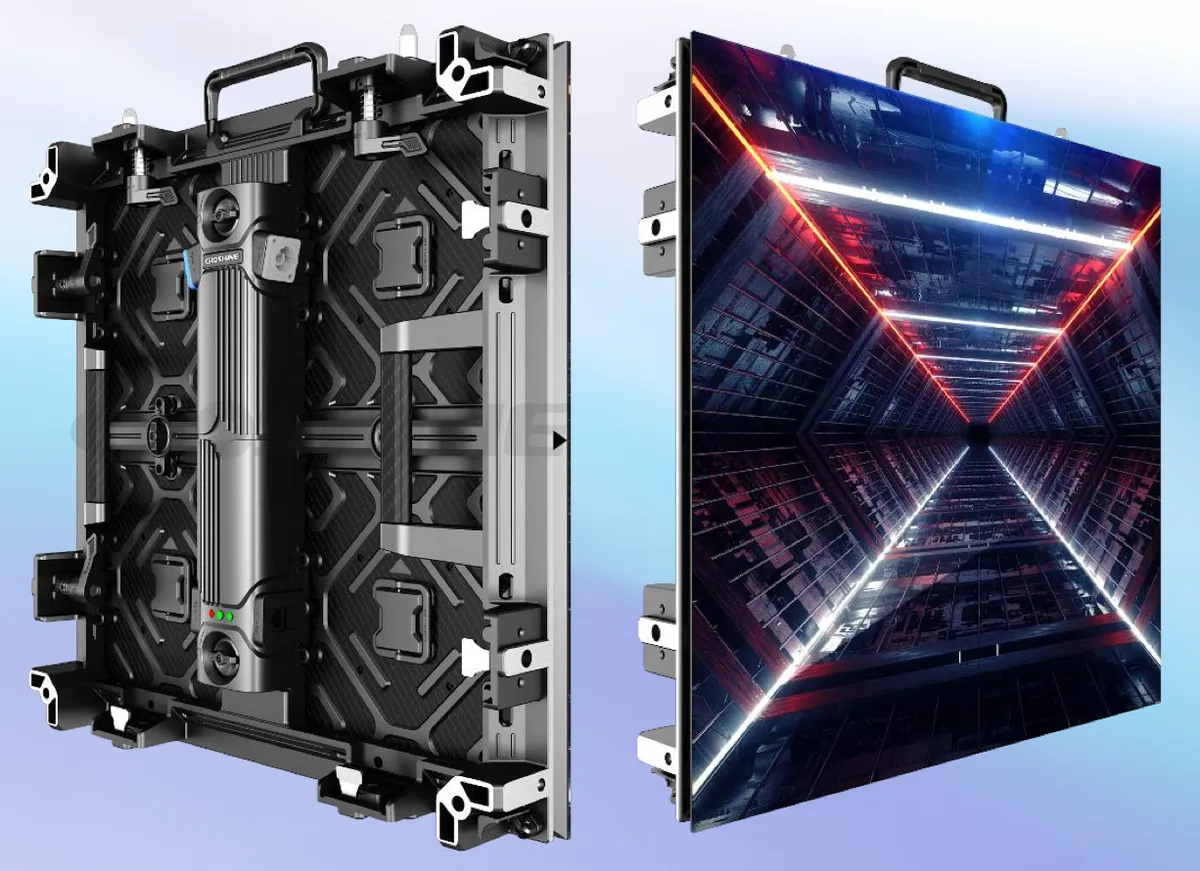

A 500 × 500 mm rental cabinet that curves, corners and flies. We flew a 10 × 3.5 m DN 2.6 wall at Anime Expo 2025. Eight cabinets travel in one flight case.
Use it for
- Events, trade-show booths and stages, flown or ground-stacked
- Curved walls, corners and cubes
- Filmed and broadcast events, virtual production backdrops: 7680 Hz
Not for
- Flat permanent walls with no room behind: the BD2.5 is thinner and front-serviced.
- Outdoors: this is the IP30 indoor version.
Also in stock: Gloshine BD2.5, the thin fixed-install panel →
Our jobs
Walls we have built on the DN 2.6
Supplied from our own stock and installed by our own crew.
Specifications
The numbers, and where they came from
Copied from Gloshine’s own product sheet. Where Gloshine’s documents disagree, the row is not here.
Display
- Pixel pitch
- 2.6 mm
- LED
- SMD1515
- Pixel density
- 147,456 pixels/m²
- Cabinet resolution
- 192 × 192 pixels
- Brightness
- 800–1000 nits
- Refresh rate (our stock)
- 7680 Hz
- Gray scale
- 14–16 bit
- Color temperature
- 6500–9500 K
- Viewing angle
- H 160° / V 140°
Cabinet
- Size
- 500 × 500 mm
- Weight
- 6.2 kg straight, 7.0 kg bevel (±10%)
- Material
- Die-cast
- Curve
- −7.5° to +7.5° in 2.5° steps
- Corners
- 45° bevel cabinet, optional
- Max stack / hang
- 10 m
- Service
- Rear; magnetic front service optional
- Flight case
- 8 cabinets per case
- Receiving card (our stock)
- NovaStar A10s Pro
Power and environment
- Max power
- ≤ 650 W/m² (about 163 W per cabinet)
- Average power
- ≤ 325 W/m²
- Input
- AC 100–240 V, 50/60 Hz
- IP rating
- IP30, indoor
- Lifetime
- 50,000 h
- Operating
- −20 to +45 °C, 10–60% RH
Source: Gloshine "Dawn Series Indoor" presentation, DN 2.6 (Indoor) 500 × 500 mm table and flight-case page, read 2026-10-29. Receiving card and refresh rate: the cabinets in our warehouse (Peter, 2026-10-29). Per-cabinet power is our arithmetic: 0.25 m² × 650 W/m².
Questions
What buyers ask about the DN 2.6
How many DN 2.6 cabinets do you have?
500+ cabinets in our Anaheim warehouse, cased eight to a flight case. Enough for a 20 m stage wall, from the shelf.
Can I buy cabinets without installation?
Yes. Rental companies, integrators and dealers buy by the case, with the matching 0.5 m flying and ground-stack bars, spare modules and the receiving-card configuration file. Registered dealers see their pricing at /dealers/. Or we supply and install the whole wall.
Is it good on camera?
Yes. Every DN 2.6 cabinet we stock runs at 7680 Hz, so broadcast, livestream and cinema cameras record it without rolling scan lines or flicker, including at faster shutter speeds. That is why it is the panel we put behind stages that are being filmed.
Can it curve or wrap a corner?
Yes. The curve locks set −7.5° to +7.5° in 2.5° steps, concave or convex, and the optional 45° bevel cabinet builds 90° corners and cubes.
Can it be flown?
Up to 10 m stacked or hung, per Gloshine. We flew a 10 × 3.5 m DN 2.6 wall from ten rigging bars at Anime Expo 2025; rigging is done by our own crew.
Do you sell the flying and ground-stack bars?
Yes. Matching 0.5 m flying bars and ground-stack bars are in stock with the cabinets, one bar per cabinet column, so a wall leaves the warehouse ready to hang or stand.
What processor drives it?
Our DN 2.6 cabinets carry NovaStar A10s Pro receiving cards, so any NovaStar sender or all-in-one controller drives them; the configuration file comes with the cabinets. We are a NovaStar dealer and commission it ourselves.
What is the warranty?
2 years on the panels, with spare modules from the same batch.
How much is it?
We quote rather than list a cabinet price: it depends on quantity, bars and spares. Send the wall size and a quote comes back within one business day. To rent it instead, see our LED screen rental page.
