Case studies
Projects we have designed and built
Each case study gives the real specifications, the problem that made the job hard, and how we solved it.
PixelPro Productions publishes case studies of events it has produced and LED walls and AV systems it has designed and installed in Southern California, as a California-licensed contractor (CSLB #1063528, Class B). Each one lists the real specifications, what made the job difficult, and what we did about it.
Industry summit · Santa Barbara, CA · 2026
75 m² of LED for Fortune’s Most Powerful Women Summit
LED subcontractor at the Ritz-Carlton Bacara: a 10 × 5 m main screen and two 2.5 × 5 m side screens, built in one day by a crew of six, struck the day the summit closed.
- 10 × 5 m main + 2 × (2.5 × 5 m) sides
- 4 × NovaStar VX1000, 4 × CVT10
- Built in one day
Residential · Redondo Beach, CA · 2026
A TV out, a 142-inch LED wall in, flush with the wall
A bright living room in Redondo Beach: the TV replaced by a 142-inch (3 × 2 m) P1.25 COB LED wall set into the reopened wall, Apple TV in, one day on site.
- 142 in (3 × 2 m) P1.25 COB, 2400 × 1600
- 1.2-inch cabinets, flush with the wall
- One day on site
Trade show · Anaheim Convention Center · 2026
An LED wall and a launch on Mindray’s booth, ADLM 2026
A 3.5 × 2 m LED wall set into the booth front on ground-support frames, with sound and playback, run by two of our crew through a product launch on the booth.
- 3.5 × 2 m Gloshine MV Pro 2.6, 7680 Hz
- NovaStar MX20, Hirender playback
- QSC sound, 16-channel mixer, wireless mics
Trade show · Los Angeles Convention Center · 2025–2026
Eleven booths at Anime Expo, two years running
AV subcontractor to a booth builder at Anime Expo 2025 and 2026: twelve LED walls (flown and outdoor), sound, lighting and stage programs run live, seven booths at once in 2026.
- 11 booths, 12 LED walls, about 180 m²
- Gloshine MV Pro 2.6, DN 2.6, BD2.5, Legend 3.9
- Crew of 8 in 2026, on site all show
Trade show · San Diego Convention Center · 2025
Glasses-free 3D on a 24 m wall, flown at Comic-Con
A 24 × 3 m flown LED wall folding at 135° for glasses-free 3D on a video game booth: folds held to ±1°, two processors on one sync, Hirender playback all show.
- 24 × 3 m Gloshine MV Pro 2.6, 7680 Hz
- 9216 × 1152, 4 × NovaStar MX40 Pro
- Hirender S3 playback
Trade show · Mandalay Bay, Las Vegas · 2024–2025
Four corners in glasses-free 3D, at TISE 2024
Four 4 m corner LED towers, one at each corner of the Provenza Floors booth, playing the client’s 3D rooms across a 90° fold; hollow inside, they were the booth’s four storerooms.
- 4 towers, each two 1.5 × 4 m faces at 90°
- 192 Gloshine PL 2.6 cabinets, 48 m²
- Hirender playback, sound, on-site control
Outdoor event · Los Angeles Chinatown · 2024
An outdoor stage beside the Golden Dragon Parade
A 5 × 3 m outdoor LED wall, sound and lighting for a sponsor’s stage by the 2024 parade route: built the day before, left overnight in an open lot, and kept running through a generator swap.
- 5 × 3 m Gloshine Legend 3.9 outdoor
- LED, sound and lighting, crew of 4
- Built the day before, open lot
Industry summit · Ovation Hollywood · 2024
A wall 6 m tall, with doors behind it
SMPTE Media Technology Summit and Awards Gala 2024: a free-standing 5 × 6 m Gloshine MV Pro 2.6 wall on truss towers, ballast and braces, sponsored in Gloshine’s name.
- 5 × 6 m, 120 MV Pro 2.6 cabinets
- 1920 × 2304, NovaStar MX40 Pro
- Free-standing, crew of 6
Product launch · East Palo Alto, CA · 2026
Dreame’s launch: drawn first, then built and run live
Dreame’s 2026 Home Appliance Launch in Silicon Valley: our 3D renders and ballroom layout, a 5 × 3.5 m P2.6 wall and line-array sound, run on the night by one video and one audio engineer.
- 5 × 3.5 m P2.6, 70 cabinets
- PixelHue 4K + U5, Hirender main and backup
- 3D renders and layout by us
Industry summit · Resorts World Las Vegas · 2025
From an empty ballroom to a 96-foot LED stage in two days
WDMS Global 2025: LED, lighting, sound and show control from our own inventory, trucked from Anaheim, built in two days and run by our crew through the summit.
- ~112 m² P2.6 LED, 448 panels
- 56 lighting fixtures, line-array sound
- 6 × NovaStar MX40 Pro
Retail · Rowland Heights, CA · 2024
Chubby Cattle: five curved LED screens around a wagyu barbecue room
Five P2 flexible LED screens for Chubby Cattle (牛武士) at Diamond Plaza, Rowland Heights, on curved cabinets we designed and built; and the sign at the owner’s Wagyu Factory in Rancho Cucamonga.
- 5 concave P2 flexible screens
- Curved cabinets built by us
- All lit by March 30, 2024
Retail · Miniso, United States · Since 2023
From Times Square to 20+ Miniso stores across the US
Miniso’s first LED screen in a US store, at Times Square in 2023, then more than 20 stores, each a different design, many retrofitted overnight.
- Times Square window: transparent LED
- Typically P2.5
- American Dream: custom round screen

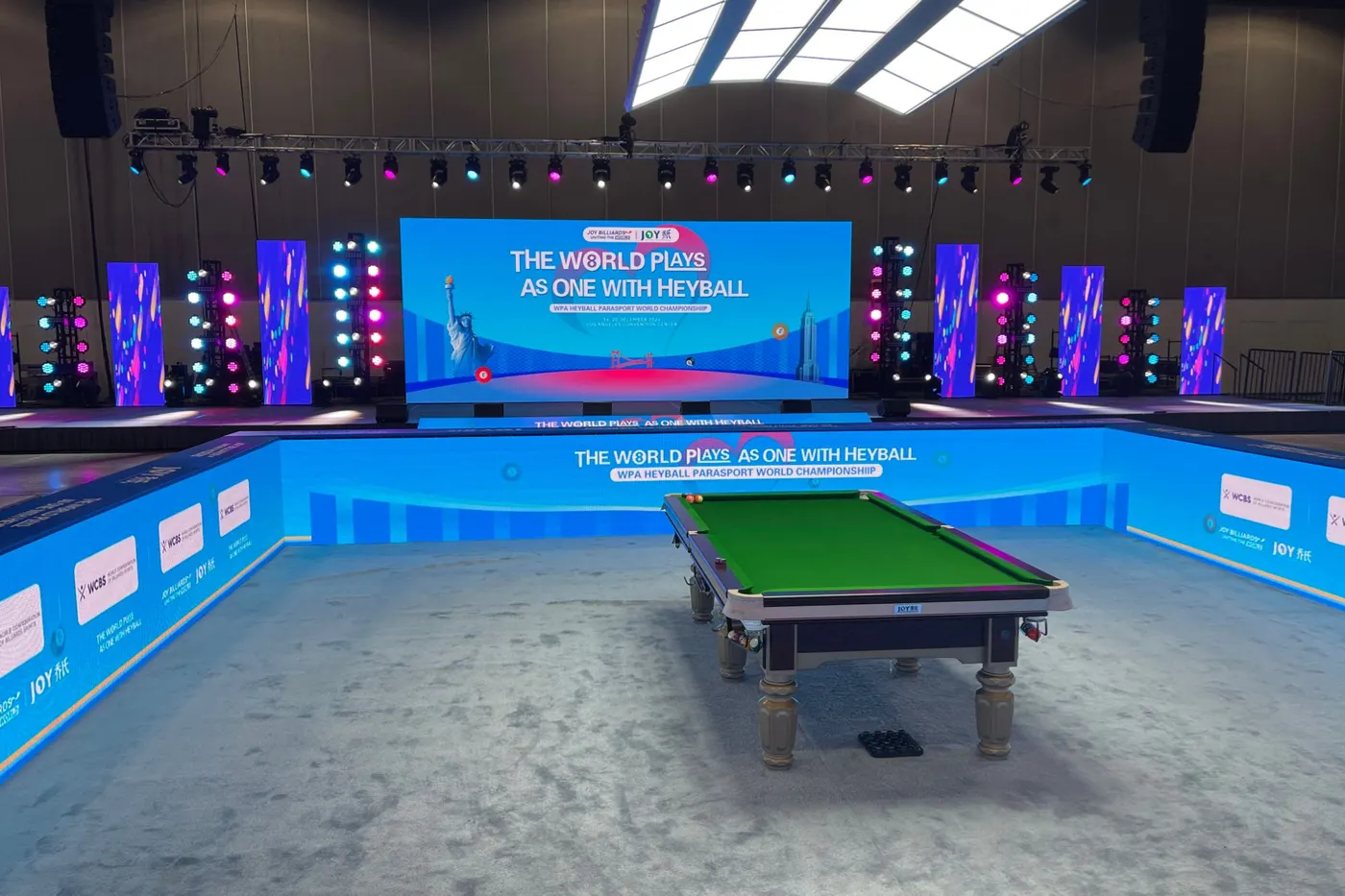

Sports event · Los Angeles Convention Center · 2024
A world championship, built in two days
The first Heyball Parasport World Championship: 143 athletes from 31 countries and regions. We designed the look and the accessible layout, then built and ran the whole technical production.
- ~136 m² LED, 10 × 4 m main screen
- 140+ lights, line-array sound
- 28 m stage with ADA ramps
Virtual production · Our Anaheim stage · 2025
Four worlds in two days, on one LED stage
ReelShort shot a short drama on our curved LED stage: snow mountains, a burning village, a desert and a castle, at short-drama pace, on its first virtual production.
- 10 × 4.5 m curved Gloshine MV Pro 2.6
- Mo-Sys StarTracker, Unreal Engine, NovaStar MX40 Pro
- Our own stage, rented with our crew
Church · Brea, CA · 2024
Two LED screens, angled at the pews, under $30,000
Live Oak United Church of Christ: two 4 × 3-cabinet P2.5 screens on a timber structure built at the viewing angle, power reworked and the existing speakers repositioned.
- 2 × (4 × 3) Gloshine Blade P2.5, NovaStar VX400
- Timber structure, drywall-wrapped and painted
- Everything under $30,000
Church · Glendale · 2024
Screen, sound, lights, cameras: the whole room, in two weeks
A 72-cabinet P2.5 LED wall above a baptistery door, RCF line arrays, eight lights and a four-camera YouTube livestream for a Korean church, installed mid-renovation.
- 12 × 6 cabinets, 7.68 × 2.88 m, NovaStar MX30
- 4 × RCF HDL 6-A, 4 × 4K PTZ, Roland V-160HD
- Two weeks on site from 29 May 2024
Church · Irvine, CA · 2025
One church, three spaces, two companies, one plan
A 33.6 ft P2.5 main wall, two side screens, a second room and an entrance screen for a Korean church, delivered with one of our integrator clients: we did the structure, design and commissioning.
- 16 × 7 Gloshine Blade 2.5, 10.24 × 3.36 m, NovaStar MX30
- About 209 cabinets across three spaces
- With an integrator partner, May–June 2025

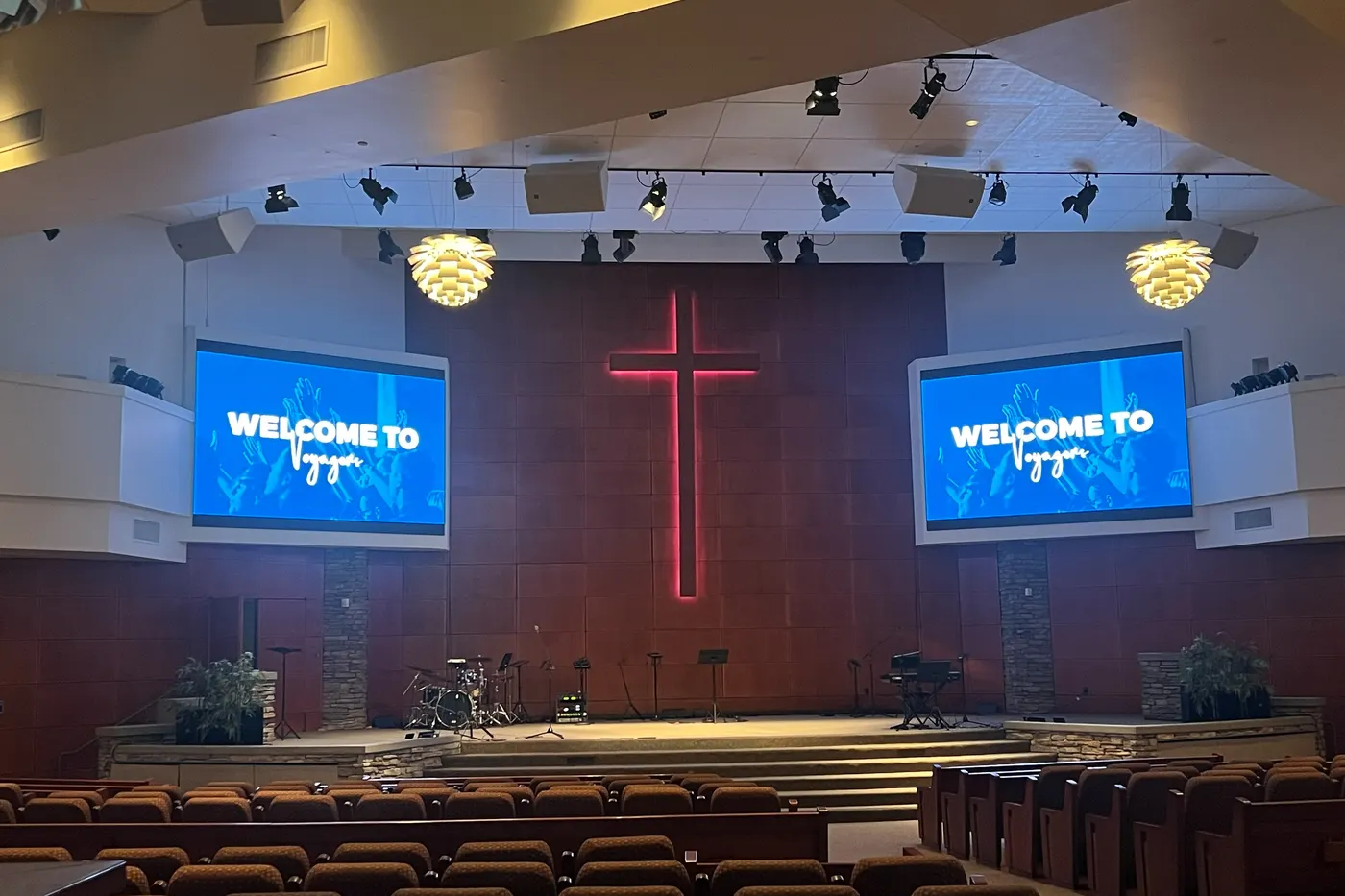

Church · Irvine, CA · 2024
Two LED screens, hung on walls never built to hold them
Old 4:3 projector surrounds, 16:9 content, and drywall bulkheads that could not carry an 800 lb screen. We anchored custom steel brackets to the concrete wall behind.
- 2 × P2.5 LED, 7 × 6 cabinets each
- 4.48 × 2.88 m per screen
- One NovaStar VX1000
Church · Las Vegas, NV · 2023
A 29-foot LED wall on its own feet, in two days
Remnant Ministries: the stage wall could not be touched, so 98 cabinets stand on a custom free-standing frame with a service corridor behind, installed in two days between services.
- 14 × 7 Gloshine Blade P2.5, 8.96 × 3.36 m
- Free-standing aluminum frame, 24 in deep
- Two days on site

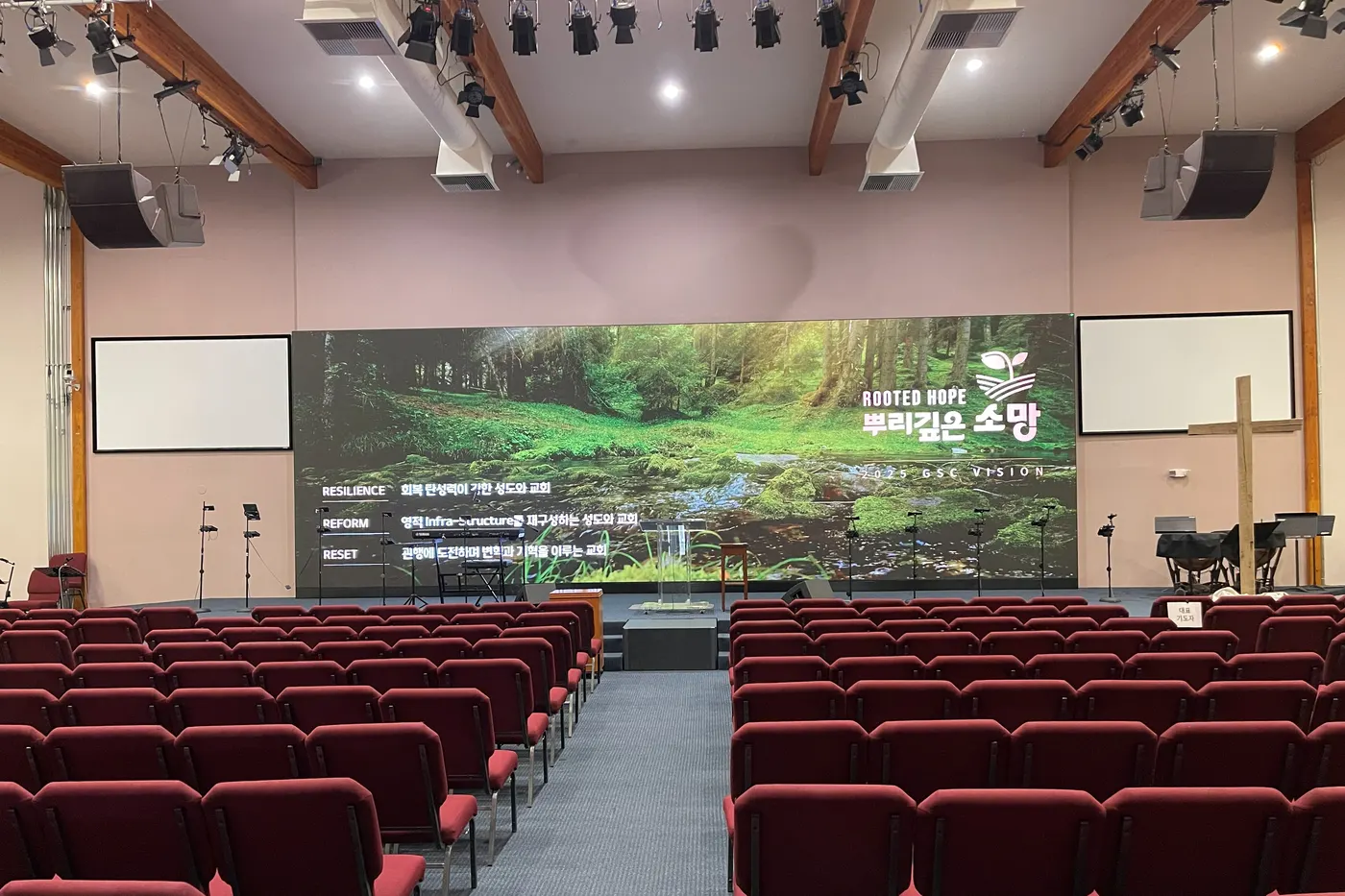

Church · West Covina, CA · 2022
Delivered Monday. Worshipping on it Sunday.
A 38-foot LED wall across the whole stage of a working sanctuary, on an aluminum frame anchored to the slab, flat to 0.5 mm. The church did not lose a single Sunday.
- P2.5 LED, 144 cabinets
- 38 × 13 ft (11.52 × 3.84 m)
- NovaStar VX16s
